Micro-swiss Direct Drive Extruder For Creality CR-10 / ENDER 3 3D Printers

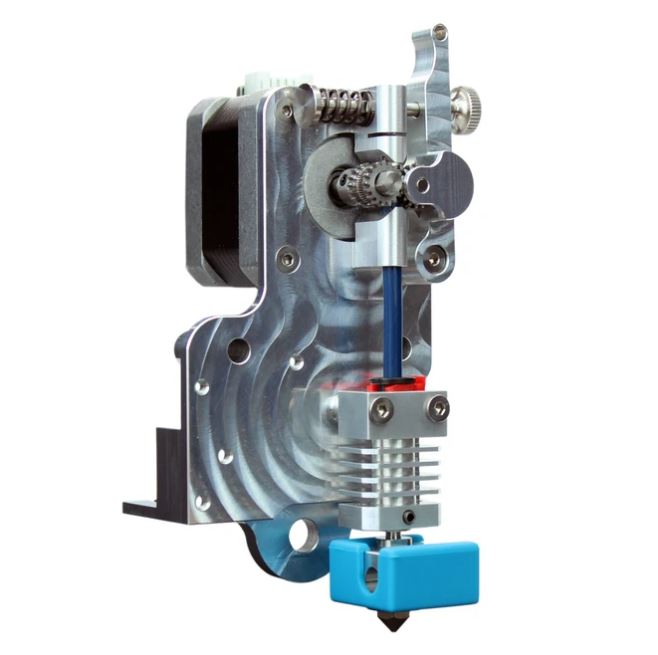

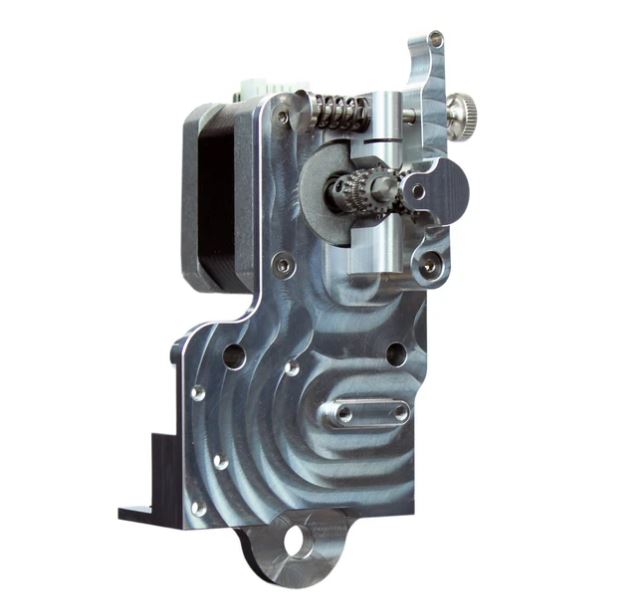

Micro Swiss Direct Drive Extruder is a drop in system for CR10 / Ender Printers

• No modification required, simple plug and play
• No printed brackets or sandwiches

Features:

• Dual-drive train
• Hardened tool steel, CNC precision cut gears
• Adjustable filament grip
• Easy filament loading
• Short, highly constrained filament path
• Prints flexible filaments with high speed and accuracy
• Outstanding extrusion control
• Lightweight aluminum body

Compatible to:

• CR-10 (Will NOT directly fit CR10 V2)
• CR-10-S5
• CR-10-S4
• CR-10S
• CR-10 MINI
• CR-20
• CR-20 Pro
• Ender 2
• Ender 3
• Ender 3 Pro

Disclaimer:

We notice a recent extruder stepper motor update on Creality machines. Before ordering this kit, please check your extruder stepper motor. If your extruder motor gear is pressed in, you will need to purchase a new stepper motor to be able to complete the installation.

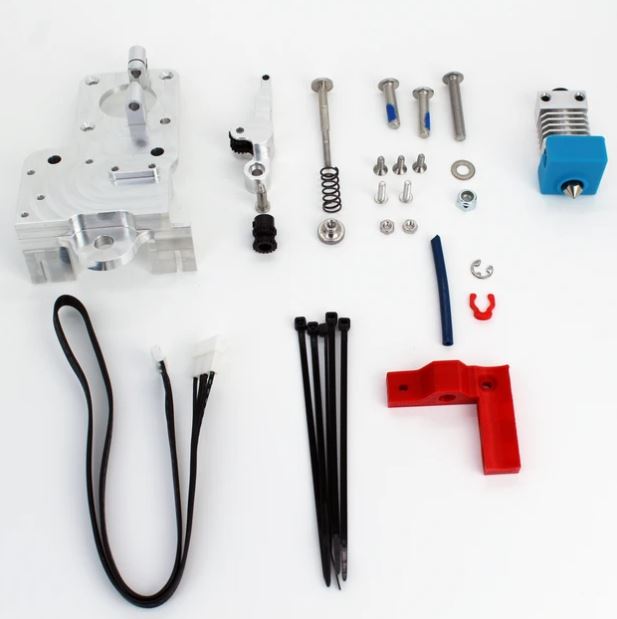

In the Box:

• Stepper motor and roller wheels are NOT included

• 1 x Micro Swiss All Metal Hotend
• 1 x Main Extruder body
• 1 x Extruder Lever
• 1 x Spring Pin
• 1 x Spring
• 2 x Gears
• 1 x Knob
• 1 x Shoulder Pin
• 2 x M5 20mm Nylon Patch Bolts
• 1 x M5 30 Bolts
• 1 x M5 Nylon Lock Nut
• 1 x M5 Washer
• 1 x Extension Cable
• 3 x M3 Motor Mounting Screws
• 2 x M3 Bolts
• 2 x M3 Nuts
• 5 x Zip Ties
• 1 x Printed Bracket
• 1 x Beveled Capricorn Liner

Installation :

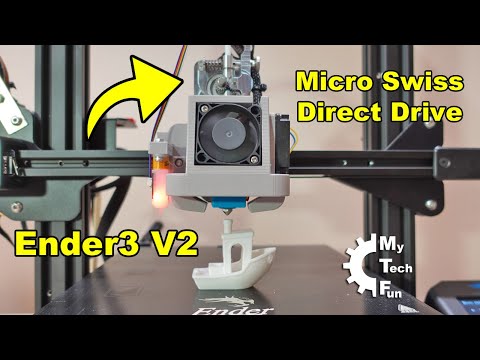

https://youtu.be/5mUT6dB5HcQ

After the installation, X and Y origins will be off the bed.

Adjustments procedure will depend on a type of the firmware and the setup you are currently using.

Chose the setup you have:

Without any bed leveling probe installed

Leveling probe installed with generic or Creality Marlin Firmware

Leveling probe installed with TH3D Unified Firmware
