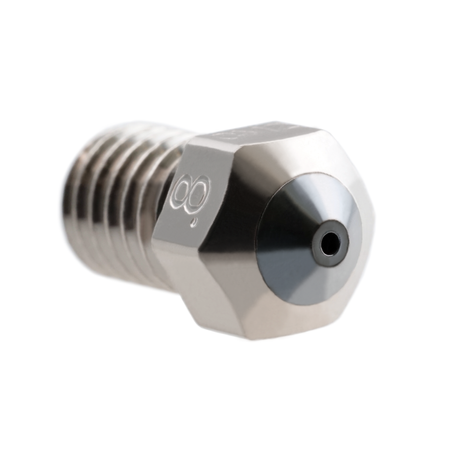

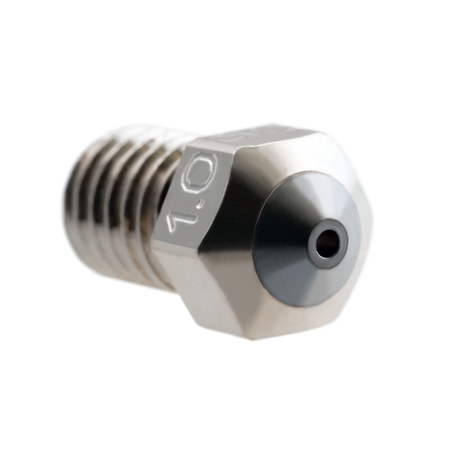

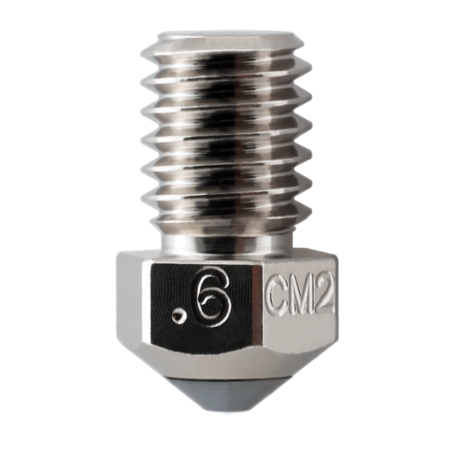

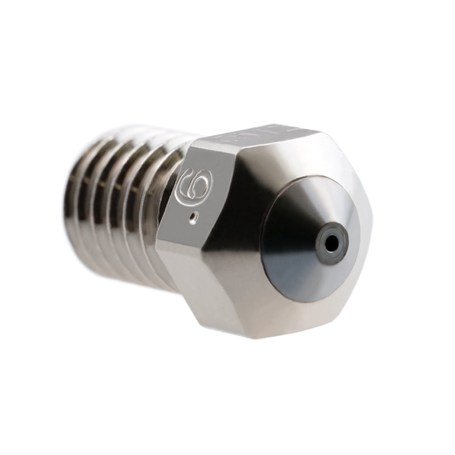

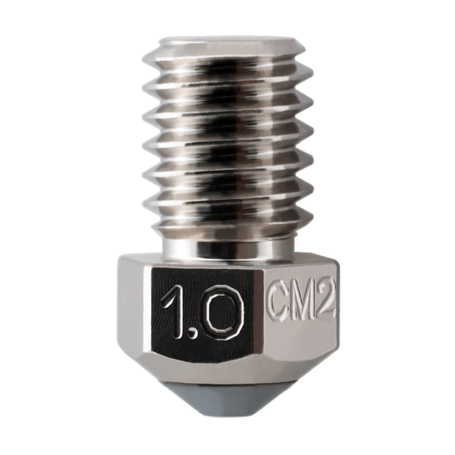

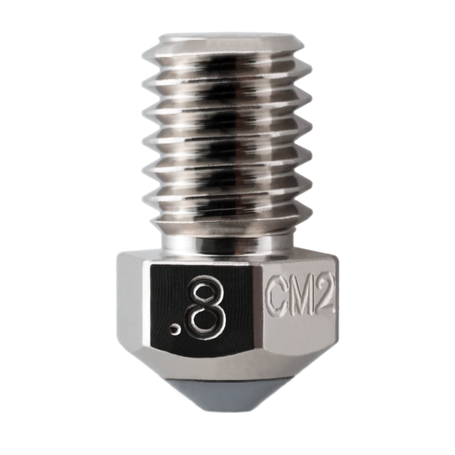

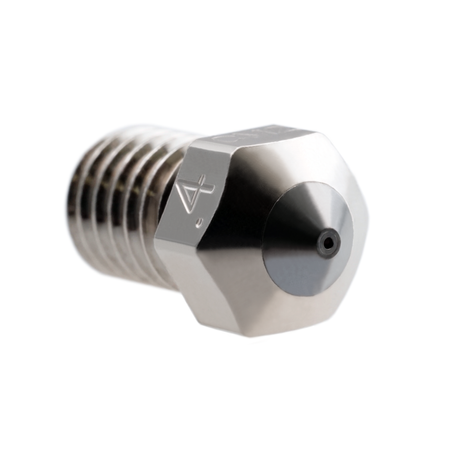

Micro Swiss CM2™ - RepRap (V6) 1.75 Nozzle

Micro Swiss CM2™ Nozzle is an ideal nozzle for all applications. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special nonstick nano coating.

Micro Swiss CM2™ Nozzle Features:

• Copper Chromium Zirconium body


• Plated with an Electroless Nickel Plating


• M2 Hardened High Speed Steel insert
• Plated with a Electroless Nickel Plating
• Coated with nonstick nano WS2 coating.
• Coefficient of friction: 0.035
• Heat-treated hardness:  68 HRC


• Orifice size available: .4mm, .6mm, .8mm, 1.0mm


• Limited lifetime warranty against wear
  Warranty

Fits:

• All printers with a E3D V4 / V5 / V6 1.75 Hotend
• Prusa i3 MK2 / MK2S / MK3 / Mini
• Anycubic
• JGAURORA

Dimension :

• Threads: M6x1.0
• Thread length: 7.5mm
• Overall length: 13mm
• Filament size: 1.75mm
